of the two tone stimuli. They are both relatively independent of amplitude, but
may vary considerably from individual to individual.Limits
The limits for pitch discrimination and the critical band depend strongly on
the centre frequency (the average frequency
of the two tone stimuli. They are both relatively independent of amplitude, but
may vary considerably from individual to individual.

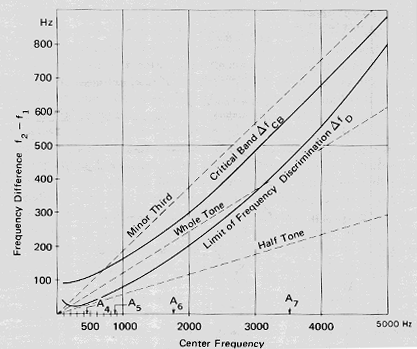

The critical band is related to several psychoacoustical phenomena. The
following figure shows the dependence of pitch discrimination
fD and
critical band fCR with the centre frequency of the component tones.
From this graph we can see for instance that two tones in the region of 2 KHz must be at least 200 Hz apart to be discriminated, and more than 300 Hz apart to sound "smoothly".
Notes
1. That the limit of pitch discrimination is larger than a 1/2 tone and even larger than a whole tone at both audio frequency extremes.
2. That in the higher frequency range the critical band lies between the frequency difference that corresponds to a whole tone ( dissonance) and that of a minor third (consonance) i.e. roughly extending over 1/3 of an octave.
3. In the lower frequency range frequency discrimination and critical band are larger than a minor third (and even a major third). This is why intervals of thirds in general are not used in the deep bass register in tonal music.
4. In comparing figure 2.13 with 2.9 the limit for frequency discrimination
fD is roughly 30 times larger than the JND for frequency resolution.
i.e we can detect very minute frequency changes in a single sine tone, but it
takes an appreciable frequency difference between two pure tones sounding
simultaneously to hear out each component separately.
5. When each one of the two tones f1 and f2 is fed binaurally into a different
ear the primary beat or roughness sensation disappears at once and both tones
can be discriminated even if the frequency difference is way below fD.
When we switch back to monaural input the beats or roughness come back. What is
happening in the binaural case is that there is only one activated region of
each basilar membrane with no chance for overlapping signals in the cochlea.
The experimental fact that the critical band frequency extension fCD
is roughly speaking independent of loudness is a strong indication that it must
be related to some inherent property of the organ of Corti on the basilar
membrane rather than the waveform in the cochlear fluid.

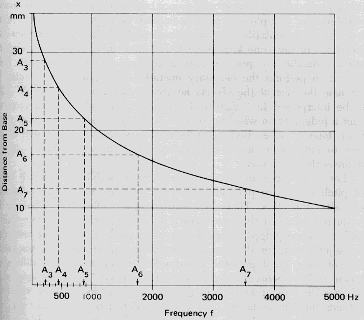

By converting this frequency extension fCB into spatial extension
along the basilar membrane (using fig 2.8) we can see that the critical band
fCB is an almost constant value of approximately 1.2 mm. Also, this
section of basilar membrane is "serviced" by a roughly constant number of about
1,300 (out of 30,000) receptor cells independently of any particular centre
frequency (i.e. independent of the position on the membrane.)
